| Brand: |
Bachmann |
| Part Number: |
36-556RA |
| Scale / Type: |
OO Scale |
| Our Code: |
B36-556RA |

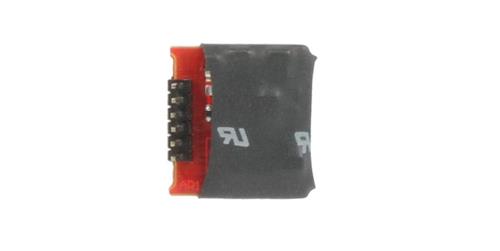

A 6 Pin DCC Decoder designed specifically for use in the Graham Farish N scale Class 3F ‘Jinty’ (item No. 372-21x) and Class 64XX ‘Pannier Tank’ (item No. 371-98x) locomotives.
Highlights include:
Dual-mode DCC/DC decoder with Back EMF function
1.0A continuous load
2 powered function outputs
Operating Modes
NMRA DCC with 14, 28 and 128 speed steps
Short and Long addresses
Advanced consist addressing
DCC and DC operation
Motor Control Features
1.0A continuous load
Back EMF speed regulation
Silent 15.6Khz pulse width modulation of motor voltage
Adjustable acceleration and braking
15 pre-set speed curves
28-point user programmable speed curve
Supports brake on DC
Function Outputs
2 powered function outputs
100mA load per output
NMRA function mapping to match outputs with user selectable function key
Dimensions
14.5mm x 9.5mm x 3.5mm
Default Address
Address 3
This decoder is manufactured on behalf of Bachmann Europe by Soundtraxx. For full technical specifications and instructions, please refer to the Soundtraxx user guide for MC1 decoders at www.soundtraxx.com/manuals/mobile-decoders |
|
|
