| Brand: |
Bachmann |
| Part Number: |
36-568A |
| Scale / Type: |
OO Scale |
| Our Code: |
B36-568A |

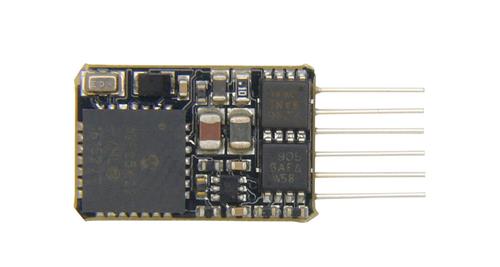

A 6 Pin (NEM651) DCC Decoder suitable for models fitted with a 6 Pin DCC decoder socket (do not use with the Graham Farish 3F ‘Jinty’ and Class 64XX Pannier Tank – use 36-556RA with these models). Highlights include: Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function 4 powered function outputs (+2 logic level/SUSI outputs) 0.8A continuous load Suitable for models equipped with DC motors (including coreless motors) Brake Button function for realistic control of braking (operates on F2) Operating Modes Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function 14, 28 and 128 speed steps Short and Long addresses Motor Control Features Suitable for models equipped with DC motors (including coreless motors) 0.8A continuous load Variable pulse width frequency motor regulation (up to 40kHz) Motor output overload protection; Back EMF (de-selectable) Function Outputs 4 powered-function outputs with overload protection (2 outputs connect via solder pads) 500mA load per output 500mA total load of all function outputs 2 additional logic level or SUSI outputs Shunting speed and momentum key selectable Dimensions 14mm x 9mm x 2.5mm Default Address Address 3 Programming DCC Service Mode & DCC PoM (Programming on Main) Additional Features RailCom® Feedback system Upgradable firmware This decoder is manufactured on behalf of Bachmann Europe by Zimo. For full technical specifications and instructions, please refer to the Zimo user guide for MX622N at www.zimo.at/web2010/documents/MX-KleineDecoder_E.pdf |
|
|
