| Brand: |
Faller |
| Part Number: |
161659 |
| Scale / Type: |
HO / OO Scales |
| Our Code: |
FA161659 |

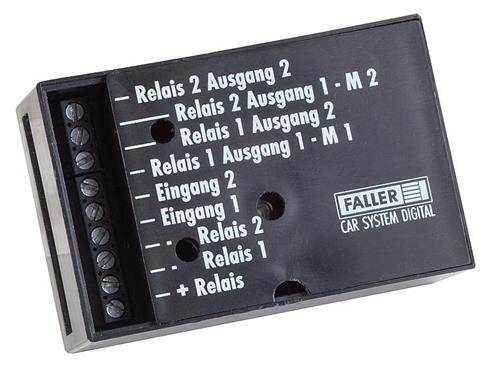

Influence scenarios situationally. Module consisting of 2 relays (12 V DC) on a small board, which enables the triggering of different actions on the model system by inserting bridges (so-called jumpers).
- Connected to the traffic control »Traffic Control«, Art. 161651 or the »Extension module«, Art. 161352, eg a smoke generator, Art. 180690 or a synchronous craft motor, Art. 180629 (alternating voltage) can be switched on or off ,
- Connected to an »extension module«, by connecting the jumpers with one of the outputs, one motor can be operated in forward motion and with another output the motor can be operated in reverse.
- The module also offers the possibility of connecting different digital systems potential-free: one of the systems switches the relay and this switching signal is processed in another system.
- By appropriate insertion of the bridges, two signals can be made from one signal: since one NC and one NO contact of the relay are used, depending on whether the relay has attracted or is open, either one or the other Contact closed. By appropriate connection of the relay module also a signal reversal is possible.
- By interposing the relay module, higher currents or other voltages (eg AC voltage) can be switched on modules whose outputs are designed too weak for the desired current.
Other possible uses are described in the enclosed operating instructions. |
|
|
