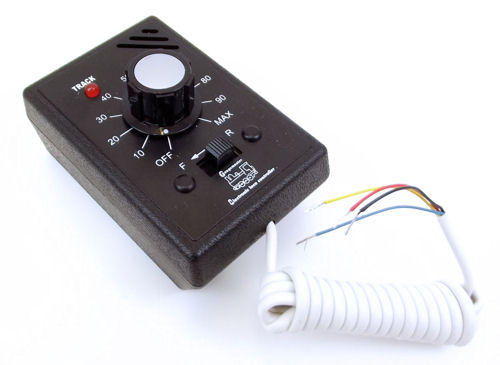

Single Track Hand Held Controller with Feedback for OO and HO Gauges. Not recommended for use with coreless design motors or N Gauge Models. We recommend using one of the following transformers to power the controller. A GM75 6 Pin Din Plug can be attached to the controller to make it portable. Note: May not be suitable for use with some DCC ready locomotives. Specifications: - Input Volts: 1 x 16v A.C.
- Input Amps: Maximum of 1.25 amps
- Output Volts: 1 x 12v D.C
- Output Amps: 1A
- Cable Length: 1.5m
Measurements: - Length: 75mm
- Width: 50mm
- Depth: 27mm
Click here for technical information. |
