| Brand: |
Marklin |
| Part Number: |
60657 |
| Scale / Type: |
N / HO / OO Scales |
| Our Code: |
MN60657 |
Note: Connection box 60114 or 60112 (lane 1) or 60116 or 60113 (H0) is required to connect the Mobile Station.
The most important data
Item No. 60657
kind Control and switching devices
Highlights
Simple comfortable operation.
Backlit graphic display with self-explanatory pictograms.
16 switchable additional functions.
320 solenoid products switchable.
Integrated locomotive card reader.
Easy cabling (plug & play) to the track box and the Central Station.
Integrated Märklin digital locomotive database.
product

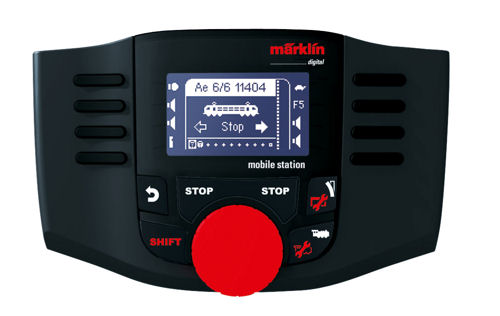

Digital hand controller control unit. 11 locomotives in direct access controllable. Locomotive selection from integrated Märklin digital locomotive database or via digital addresses. 16 locomotive functions and 320 solenoid parts switchable. Automatic display of the functional states in the integrated backlit b / w full-graphic display through self-explanatory pictograms for mfx locomotives or locomotive selection from integrated digital locomotive database. Integrated locomotive card reader. Red illuminated stop button. 1.9 A power unit in the optional track box (60114 or 60112/60116 or 60113). Direct connection of 2 Mobile Stations (60657) to a track box (60112/60114 or 60113/60116), which then operate together in master-slave mode. By using MS II Hubs (60122), the number of used vehicles can be increased up to 10. When operating the Mobile Station on the Central Station (60216, 60226 and 60213-60215), the Central Station settings (full locomotive list of the Central Station, all the Central Station keyboards accessories with their designations) can be used. Driving and controlling of vehicles in the formats motorola, mfx and DCC, switching of magnet articles in the formats motorola and DCC. Dimension 160 x 100 x 39 mm.
warning
ATTENTION: For adults only |
|
|
