| Brand: |
Marklin |
| Part Number: |
60832 |
| Scale / Type: |
N / HO / OO Scales |
| Our Code: |
MN60832 |
The most important data
Item No. 60832
kind decoder
Highlights
Supports the digital format mfx.
LED displays for quick recognition of operating conditions.
Updates available.
product

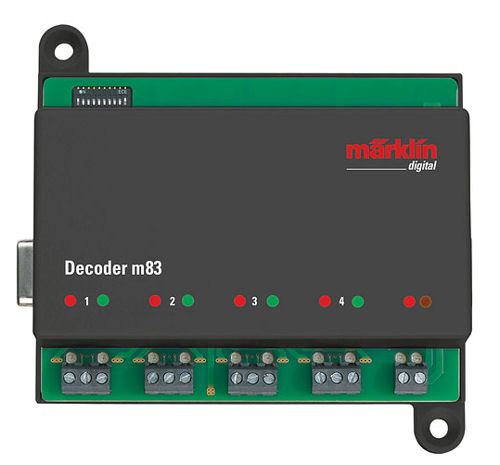

Receiver for switching turnouts, signals and uncoupling tracks. The m83 supports the digital formats Motorola, DCC and mfx. Setting the digital address via coding switch or via the programming track in steps of 4 possible. The address range is available in Motorola format up to address 320 and in DCC format up to address 2040. The m83 has 8 outputs, which can be controlled separately or in pairs. The default setting is the switching of up to 4 points. Other functions include the switching of up to 8 lights (dimmable) with a defined switch-on behavior (eg street lighting, house lighting). It is possible to realize an external supply, eg via 66360, only in connection with 60822. The decoders m83 and m84 can be arranged in any order. For motor drives, a set-up set 60821 is required per output pair. The connection is made by means of lift clamps. Maximum current carrying capacity is 3A.
characteristics
b Digital locomotive or digital device for the Märklin Digital System (Motorola format). Y
warning
ATTENTION: For adults only |
|
|
