| Brand: |
Marklin |
| Part Number: |
76493 |
| Scale / Type: |
HO Scale |
| Our Code: |
MN76493 |

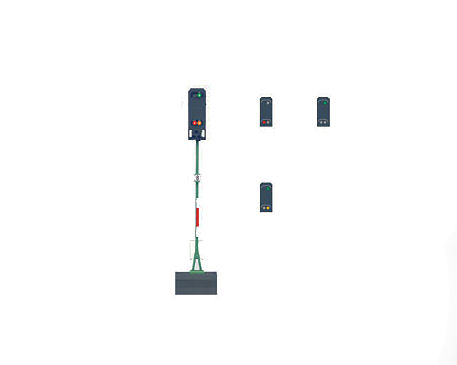

Prototype: German Federal Railroad (DB) standard entry signal. 3 positions: "Halt" - red (Hp0), "Fahrt" - green (Hp1) and "slow motion" - green / yellow (Hp2).
The most important data
Item No. 76493
Track / type H0 / 1:87
kind signals
Highlights
Entry signal for use in front of stations.
Suitable pre-signal, single Item no. 76480 and 76481 or to the signals Art.-No. 76495 and 76496.
product
Model: With integrated signal electronics and 1 separate signal decoder. All functions can be controlled via the associated signal decoder in the digital system or with the 72760 control panel in conventional systems. Signal decoder can be installed under the C-track or under the system. For digital operation, the configuration and address can be assigned and tested prior to installation. At the signal decoder connections for the train control and for 1 distant signal. Height without base 78 mm.
characteristics
e Digital decoder with up to 32 digitally switchable functions. The respective number depends on the used control unit. b Digital locomotive or digital device for the Märklin Digital System (Motorola format).
warning
ATTENTION: For adults only |
|
|
