| Brand: |
Marklin |
| Part Number: |
76497 |
| Scale / Type: |
HO Scale |
| Our Code: |
MN76497 |

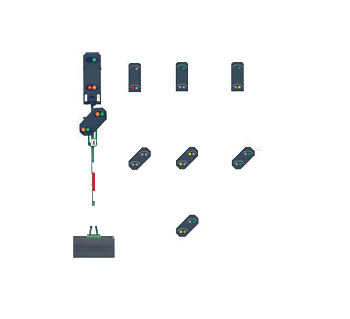

Prototype: Approach signal with pre-signal in standard design of the German Federal Railways (DB) on the same signal mast. Main signal with 3 positions as item no. 76493. Advance signal with 3 positions as item no. 76480/76481.
The most important data
Item No. 76497
Track / type H0 / 1:87
kind signals
Highlights
2 signals on a mast without additional connection.
Entry signal for use in front of stations.
Advance signal for use in front of an extension signal.
product
Model: With 2 integrated signal electronics and 1 separate signal decoder. Pre-signal can be used for all main signals. All functions can be controlled via the associated signal decoder in the digital system or with the 72760 control panel in conventional systems. Signal decoder can be installed under the C-track or under the system. For digital operation, the configuration and addresses of both signals can be assigned and tested prior to installation. At the signal decoder connections for the train control and for 1 further pre-signal. Height without base 78.0 mm.
characteristics
e Digital decoder with up to 32 digitally switchable functions. The respective number depends on the used control unit. b Digital locomotive or digital device for the Märklin Digital System (Motorola format).
warning
ATTENTION: For adults only |
|
|
