| Brand: |
Roco |
| Part Number: |
35900 |
| Scale / Type: |
TT Scale |
| Our Code: |
RC35900 |
Track: TT |Power system: 2L DC

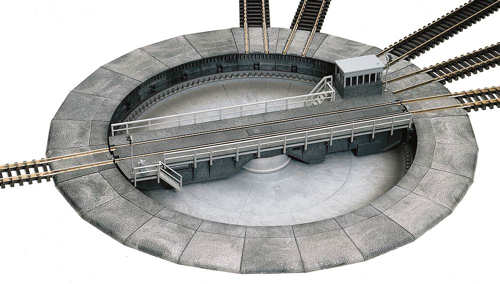

Model turntable with electric drive and electrically selectable track exits for the track size TT, with turntable switch.
Length of swing bridge 183 mm.
Suitable for all locomotives up to a total wheelbase of 170 mm.
Important dimensions:
* Outer diameter with approach rails: 257mm
* Plate cutout diameter 203mm
* Installation depth pit 20.5 + cable holder 5.6mm
The turntable is manufactured in prototypical pit construction and in exemplary representation of all details. The basic equipment of the turntable consists of 6 ramps. The drive-on tracks can be repositioned in any number and arrangement at an angle of 15 ° and can be extended to a total of 24 track connections with Turntable Extension Sets 35901.
The turntable switch controls the rotational movement of the turntable in order to reach the corresponding track exit. The traction current feed takes place in the swing bridge. The desired track exit to which the swing bridge is connected is switched on electrically by switch 6910. All other track exits (even one opposite) are then automatically de-energized. Thus, a maximum of 24 track exits can be controlled and electrically switched on individually, without additional wiring is required. |
|
|
