| Brand: |
Roco |
| Part Number: |
42615 |
| Scale / Type: |
HO Scale |
| Our Code: |
RC42615 |
Track: H0 |

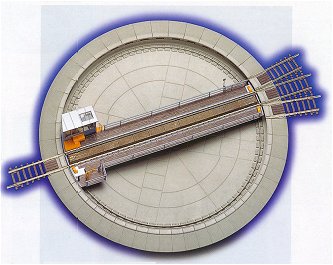

Turntable with electric underfloor drive and control unit.
Suitable for all NEM-compliant two-wire DC and three-wire AC tracks. Stage length 253 mm, this corresponds to 22 m in the prototype.
The minimum angle between two track exits is 9 degrees. The turntable is filled with partitions of 1 °, 3 °, 6 ° and 9 °. This allows any division between the track exits in 1 ° increments from 9 ° upwards.
A maximum of 40 track exits can be used. The turntable has four track exits for 2L = enclosed.
Further track exits are available as accessories (42616, content: four 2L = track exits).
If the turntable is to be used on a central conductor alternating current track, the dealer exchanges the enclosed original packing 2L = track exits for one pack of 3L ~ track exits (42617, contents: three 3L ~ track exits) when purchasing the turntable.
The stage drive works with a supply voltage of 14 V ~. The driving power is supplied depending on the system used with DC or AC. The turntable is enclosed with a control unit with which the direction of rotation is preselected and the rotary motion is started.
When the turntable switch is released, the turntable stops exactly at the next track exit. Technically, the turntable is prepared for a pre-selection control, which allows a direct selection of the desired track departure. As with the prototype, two rotational speeds can also be preselected for the ROCO model. The traction current feed takes place in the revolving stage. The traction voltage supply of the track exits can be assigned via the control unit. This prevents a possibly parked locomotive from unintentionally starting when two opposite track exits are plugged in. *
A 1 m five - pole cable (transformer control unit) and a 2 m eight - pole cable (control unit turntable) are included. Installation
dimensions:
Required installation opening: 280 mm;
Installation depth measured from top of table: 50 mm;
Outer diameter of the turntable without track exits: 307 mm;
Stage length: 253 mm, suitable for all locomotives up to a total axle height of 250 mm.
* When using the turntable in DCC mode (digital), it is necessary to use the reverse loop module. |
|
|
