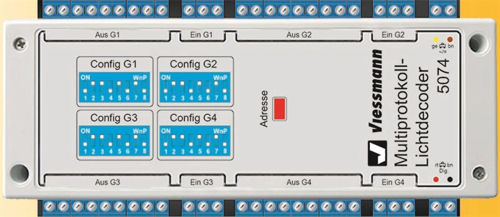

Viessmann 5074 Multi Protocol Light Decoder

Multi functional applicable light decoder with numerous options by easy operation. The configuration of the functions can be set in the extended range by DIP-switch. Upgrades by CV-programming are provided. 4 groups with 8 current protected outputs could be single switched, or are configured for special lighting effects.

Flicker-free LED-operation and various effects provide numerous fields of application on your layout. Each of the 4 output groups are selectable by more than 20 different effects resp. scenarios.

Applications:

• House illumination with random operation,
• TV-simulator
• Trade lighting
• Operation of street lamps with set-up effects
• Flickering by chance and afterglow (e. g. campfire, warning blinker, St. Andrew`s crosses, flashing lights)
• Special effects (e. g. thunderstorm, fireworks, double flash for emergency vehicles)

Power consumption each output: Max. 100 mA, current protected. For analogue and digital operation.
