| Brand: |
Viessmann |
| Part Number: |
5078 |
| Scale / Type: |
HO / OO Scales |
| Our Code: |
VN5078 |

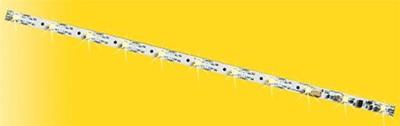

H0 Coach lighting, 11 LEDs white, with function decoder
Coach lighting with maintenance free, bright LEDs with integrated multi protocol decoder (Motrola & DCC). Brightness adjustable by CVs and potentiometer. Can be used in any lighting prepared coaches of all manufactures. By shortening the circuit, it can be adapted to various waggon lengths. Integrated flickering protection for constant light even with short interruptions of the voltage supply, additional capacitors/powerpacks can be connected. Various lighting effects are adjustable, as start-up simulation of ballast inverter or single flickering tubes. The model offers direction depending switching outputs for front- and rear lighting. An additional switching output up to 150 mA capacity completes the functionalities. Power supply by grinder/point unit or conducting couplers item-No. 5048/5071. Suitable for DC, AC or digital power. Connection to train rear lanterns, e. g. item-No. 5056. Due to low-loss switching regulator the coach lighting warms up only a bit. Maximum power input 20 mA. Dimensions: L 254 x W 8 mm.
|
|
|
