| Brand: |
Viessmann |
| Part Number: |
5244 |
| Scale / Type: |
HO / OO Scales |
| Our Code: |
VN5244 |

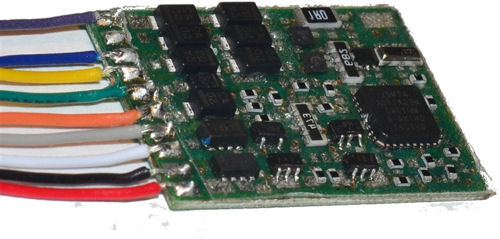

H0 Locomotive decoder with cable
RailCom compatible multi protocol locomotive decoder suitable for DC, DCC (2- and 4-digit addresses) and Märklin Motorola (previous/new) with automatic format identification. Adjustable minimum and maximum speeds as well as an open programmable drive step schedule (28 steps), adjustable high frequency load also suitable for coreless-motor, with 14, 28 and 128 driving steps. Drive current 1 A constantly, 1,8 A max., 2 light outputs – depending on direction with more functionalities: Function mapping (free programmable functional key allocation) dimming, flash, timer function for coupler. Shunting (switched off speed-up- and brake ramp). The complete loading capacity of the functional outputs is to 500 mA, which can be variable distributed to the outputs. All outputs are protected against overloading, in addition the decoder is overheating protected. The decoder is equipped with a SUSI interface as well as a connection for energy storage, on the soldering pads. Dimensions: L ca. 25 x W 15,4 x H 3,3 mm. Decoder as item-No. 5245, but without interface plug.
|
|
|
