| Brand: |
Viessmann |
| Part Number: |
5245 |
| Scale / Type: |
HO / OO Scales |
| Our Code: |
VN5245 |

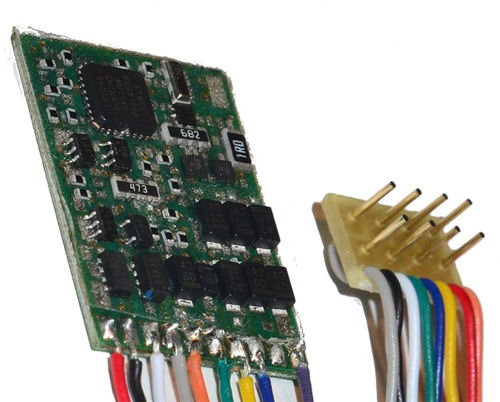

H0 Locomotive decoder with 8-pole interface plug
RailCom compatible, compact multi protocol locomotive decoder suitable for DC, DCC (2- and 4-digit addresses) and Märklin Motorola (previous/new) with automatic format indentification. Adjustable minimum and maximum speeds as well as an open programmable drive step table (28 steps, interpolated 128 steps), adjustable high frequency load also suitable for coreless-motor, with 14, 28 and 128 driving steps, plus switching way. Drive current 1 A; 1,8
A max. 2 light outputs – dependent on direction with further functionalities: Function mapping (freely programmable functional key allocation) diming, flash, timer function for coupler. The complete loading capacity of the functional outputs is to 500 mA, which can be variable distributed to the outputs. All outputs are protected against overloading, in addition the decoder is overheating protected. It has a SUSI interface as well as connection for energy storage, on the soldering pads. With 8-pole interface plug according to NEM 652. L ca. 25 x W 15,4 x H 3,3 mm. |
|
|
