| Brand: |
Walthers Cornerstone |
| Part Number: |
933-2618 |
| Scale / Type: |
N Scale |
| Our Code: |
WH933-2618 |
Product Information

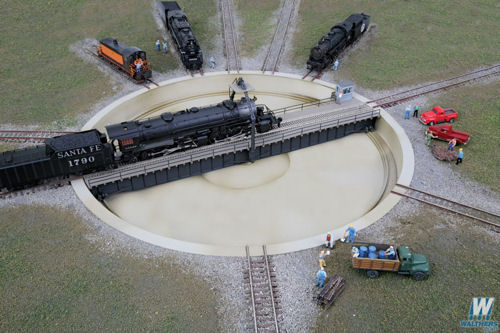

Sure to be the focal point of any N Scale engine terminal, this Walthers Cornerstone 130' Motorized Turntable is where steam locomotives, and later diesels, were turned around at the end of their runs. Normally serving a roundhouse, turntables were placed adjoining the roundhouse, servicing tracks and at major terminals, backshops. This 130' turntable is large enough to turn larger locomotives such as a 4-8-4 Northerns, 2-10-2s all the way up to a 4-8-8-4 Big Boy. It'll look great at your locomotive terminal, at junctions and anywhere else large steam locomotives must be turned. On your layout use the 130' Motorized Turntable as the heart of your servicing facility alongside other Cornerstone N Scale railroad buildings.
130' length typical of large tables built from 1920s on - some still in service today
Must-have detail for engine terminals
Holds locos up to 9-3/4" 24.7cm long - big enough for a 4-8-8-4!
Layout mounting templates for pit and Cornerstone Turntable Control Box
User-friendly, illustrated instructions simplify assembly
Requires 9-15/16" 25.2cm mounting hole to be cut in layout for installation
10-3/8" 26.3cm overall diameter
Control Box included for use on layouts with DC or DCC train control
New Cornerstone Turntable Control Box for simple operation and programming with:
Programmable indexing for up to 99 different tracks
One-touch 180-degree bridge rotation in either direction
Simplified LED display with adjustable brightness
Operable from up to four remote locations with additional Control Boxes (933-2320 each sold separately)
Optional: To control turntable operation with DCC throttle or serial UART controller, purchase Cornerstone Advanced Control Module (933-2321, available separately)
Comes complete with motor and Control Box, operates on 12-18v AC, 16-24v DC power supply (power supply not included)
Comes with Code 80 rail installed on bridge |
|
|
