PRODUCT SPOTLIGHT -

OMNI Series Decoders Explained

CRAIG WEATHERLEY goes through our OMNI range of DCC Decoders.

The OMNI range of decoders are the follow up to our popular OPTI range, and we took the chance to refresh the range and source a new family of decoders which can solve most scenarios in just three items. The OMNI decoders are programmed with the latest data available and have allsorts of amazing stuff such as Back EMF for perfect running, consisting (double heading), special lighting effects (firebox lights, flashing), on track programming and address locking. All of the OMNI Decoders are also available in handy packs of five to allow you to digitise your fleet of locomotives at a reduced cost. Full technical support is available from us for these decoders.

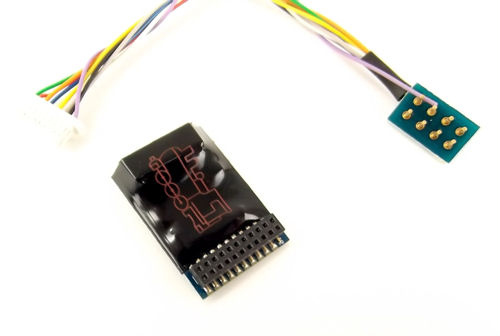

DCC27 OMNI 21 & 8 Pin Decoder

Most Suited to OO/HO Gauge Locomotives

Best For OO Versatility

Let’s start with the DCC27, this 8 Pin decoder with harness will fit into most OO/HO locos, with the increased flexability of being able to fit into 21-Pin DCC-Decoders (Bachmann and Heljan OO Locomotives, some Dapol OO Diesels).

• Functions: 4
• Rating: 1 amp / 1.8 amp peak
• Dimensions: Length 22mm, Width 16mm, Depth 5mm
• Harness Length: 75mm

DCC27 OMNI 21 & 8 Pin Decoder

BPDCC27 OMNI 21 & 8 Pin Decoder (5 Pack)

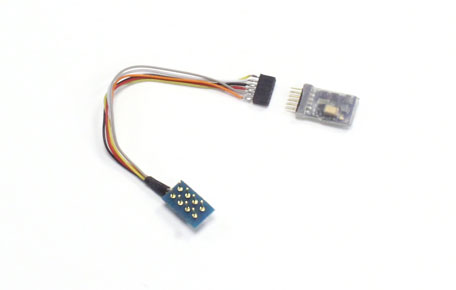

DCC28 OMNI 8 & 6 Pin Decoder with Harness

Most Suited to OO/HO Gauge & N Gauge Locomotives

Best For Multi-Scale

This is an N Gauge and OO/HO Decoder in one! This is a multi scale decoder with 6 pins on the decoder, and an 8 pin harness; this amazing decoder is suited for any N Scale DCC-Ready locomotives with 6 Pin sockets, and also OO/HO modellers who need an additional 6 pin decoder for lights. The decoder itself is tiny, only 15mm by 8mm, which means even with the harness attached you have an 8 pin decoder which is then suited for small spaces.

• Functions: 2
• Rating: 0.6 amp / 0.8 amp peak
• Dimensions: Length 15mm, Width 8mm, Depth 3mm
• Harness Length: 55mm

DCC28 OMNI 8 & 6 Pin Decoder with Harness

BPDCC28 OMNI 8 & 6 Pin Decoder with Harness (5 Pack)

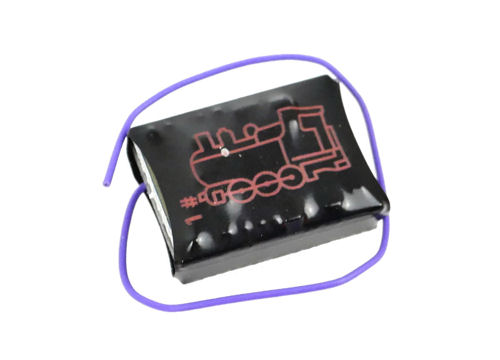

DCC29 OMNI Direct Plug 8 Pin Decoder

Most Suited to OO/HO Gauge Locomotives

Best For Small Spaces

This is a very small 8 pin direct plug-in decoder which is perfect for modellers who don't have much space to fit a full-size decoder into their OO/HO locomotive.

• Functions: 4
• Rating: 1 amp / 1.5 amp peak
• Dimensions: Length 15mm, Width 12mm, Depth 10mm

DCC29 OMNI Direct Plug 8 Pin Decoder

BPDCC29 OMNI Direct Plug 8 Pin Decoder (5 Pack)

Other Decoders

For completeness, here is a listing of our other non-OMNI Range Deoders.

DCC22 Very Small Locomotive Decoder 2 Function

Most suited to OO/HO Gauge Locomotives - Best For Size

DCC23 6 Pin N Gauge Plug-in Decoder

Most suited to N Gauge Locomotives - Best For N Scale

DCC26 Compact 4 Function 8 Pin Decoder

Most suited to OO/HO Gauge Locomotives - Best For Tight Budgets

If you have any questions about our decoders, don't hesitate to contact either our Sales or Technical departments.

Craig is becoming somewhat of an expert on chips, and suprisingly not the sort that come with salt and vinegar...
