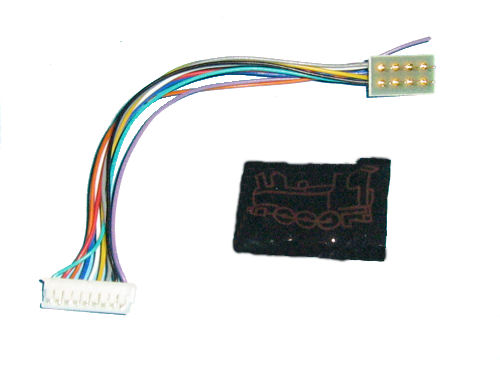

Gaugemaster DCC25 OPTI Standard 4 Function Decoder

FEATURES

• Size: 25.25mm x 16.6mm x 5.3mm (0.95” x 0.65” x 0.2”)
• Power Handling: 1.3A Motor Drive (2A peak), 4 light/switchable functions - each 150mA, 200mA max.
• Addressing: Address 3 preset, will accept any address between 1 and 9999.
• Harnesses: 90mm overall length, removable 9 pin JST, 8 pin NEM652 plug with wires dressed to UK standard.
• DC Running: Allows running on both DC and DCC layouts with no adjustment, if your controller has a smooth DC output then your locomotive will run better than before!
• Back EMF: Adjustment free Back EMF ability that will give perfect low speed control. Functions: The OPTI decoder has 4 functions which can be remapped, and are switched on and off via the function control buttons on your digital handset. As well as directional or dimmed lighting, there are a dozen different lighting effects available.
• Reset: The decoder can be simply reset to the original factory settings should you want to reset your decoder after experimentation, or have forgotten the decoder address.

Click here for instructions.
